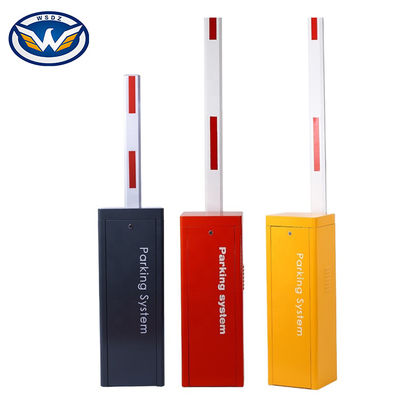

Low Cost Heavy Duty Economical Barrier Gate Remote Control AC Motor Barrier

1.0 set
MOQ
Low Cost Heavy Duty Economical Barrier Gate Remote Control AC Motor Barrier
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number:: DZ-130
Speed:: 1.8s, 3s, 6s
Certificate:: CE
OEM/ODM:: Supported
Boom Length:: Max 6 meters
Arm type:: straight, folding, fencing
Color:: White, Grey, Customized
Material:: 1.5mm Cold Roll Plate Or Galvanized Plate
Features:: Heavy duty, swing out, remote control
Name:: Low Cost Economical Barrier Gate Remote Control AC Motor Barrier
Основная информация
Сертификация: CE
Model Number: DZ-130
Оплата и доставка Условия
Packaging Details: Low Cost Economical Barrier Gate Remote Control AC Motor Barrier Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Supply Ability: 2400 Set/Sets per Month Low Cost Economical Barrier Gate Remote Control AC Motor Barrier
Характер продукции
Company Information

Low Cost Economical Barrier Gate Remote Control AC Motor Barrier
Technical Data:
Name Barrier gate, Parking barrier,Boom barrier
Model DZ-130
Size 350*270*935mm
Rating Voltage AC 220/110V ±10%, 50/60Hz
Motor Power 80w
Speed Option 1.8s; 3s; 6s
Material 1.5mm galvanized plate or cold roll plate with epoxy paint
Weight 55 KG
Operation Testing More than 5 million times
Arm Option

Straight arm, 1-6 m for option, 45*80mm or 45*100mm

Folding arm, 1-4.5 m for option, 90 degree or 180 degree

Fence arm, 1-5m for option, two fence or three fence

Working Temperature -45°C — +75°C
Remote Control Distance Less than 30m
Package

Packing size: 1040*352*470mm, standard export carton case

Inside with PE foam for collision protection
Application

Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center
Functions&Features:

1) Machine core with tension spring, effectively avoids the accidents caused by spring breaking
2) Die-casting aluminum alloy motor, precision and good at thermal radiating
3) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
4) Arm swing out
5) Support the INFRARER PHTOCELL for anti-bumping function (optional)
6) Support the external and internal VEHICLE LOOP DETECTOR (optional)
7) Traffic light interface
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)

LLow Cost Economical Barrier Gate Remote Control AC Motor Barrier

Low Cost Economical Barrier Gate Remote Control AC Motor Barrier

Low Cost Economical Barrier Gate Remote Control AC Motor Barrier
